TecView™ EC is a true Windows® based software designed for Automated Eddy Current inspections, from data Acquisition to data Analysis. Combining the best of Windows® operating system and graphical user interface, its features are developed for the inspection workplace.
TecScan’S team developed the TecView™ EC software bearing in mind versatility and efficiency. To achieve these goals, the software has a reporting utility that can generate and print custom inspection reports that make information sharing easy.
TecView™ EC performs automated EC testing !
Software for system motion control, data Acquisition and Analysis.
TecView™ EC data acquisition & analysis
With its intuitive and user-friendly interface, This Eddy Current software assists with the task of performing Eddy Current inspections from start to finish. It includes data acquisition and management, robotic control, imaging, analysis, alarms and interpretation modules. TecView™ EC supports most of the standard Eddy Current equipment and file formats found in the industry.

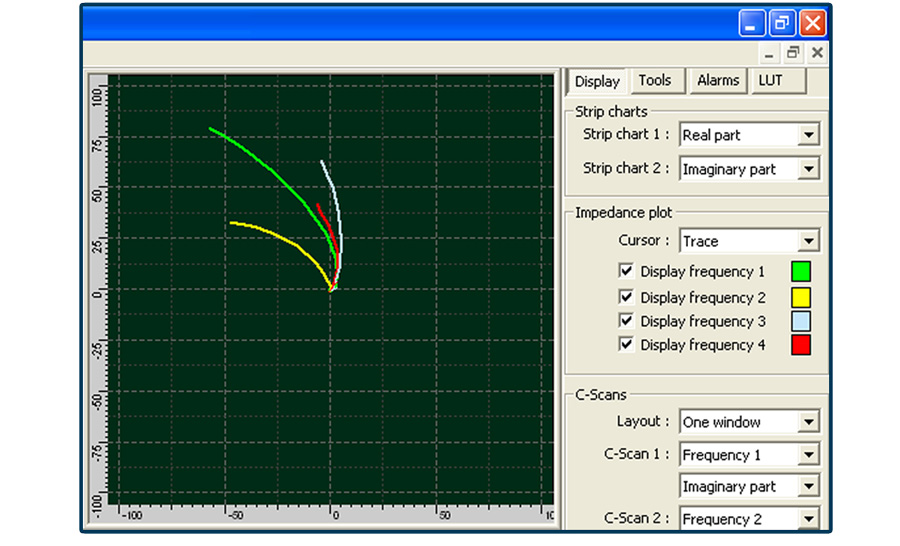

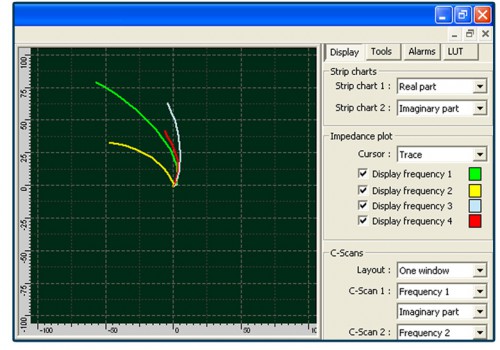

The ACQUISITION module aids the user to set all scanning and acquisition parameters, as well as 8 different kinds of alarms, with a real-time display of impedance plots. Once all parameters are set and the scan begins, both impedance plot and the C-Scan are displayed in real-time while the scan is performed, along with the selected alarms.

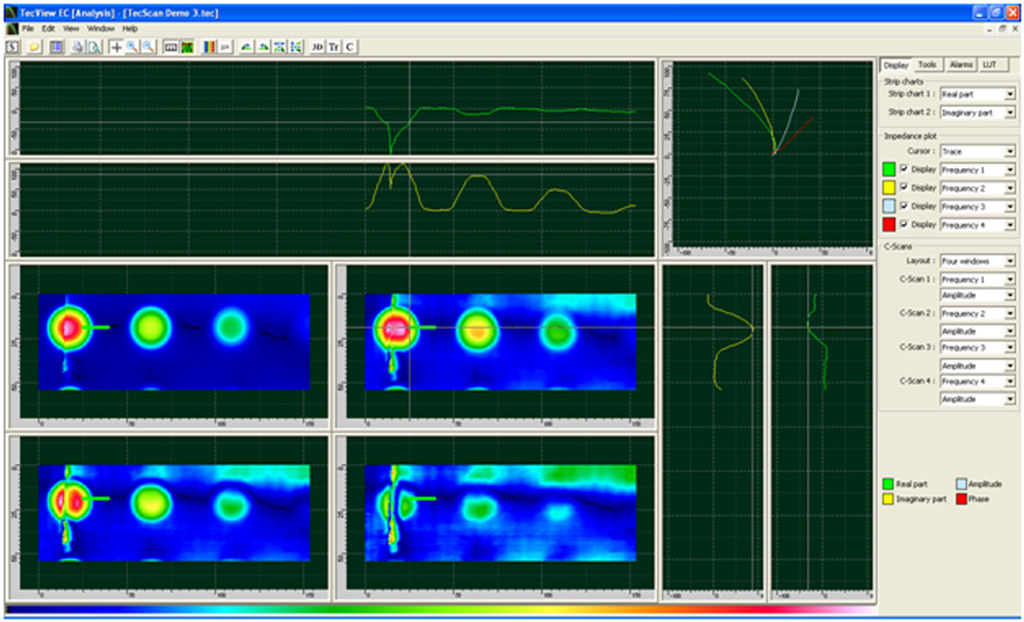

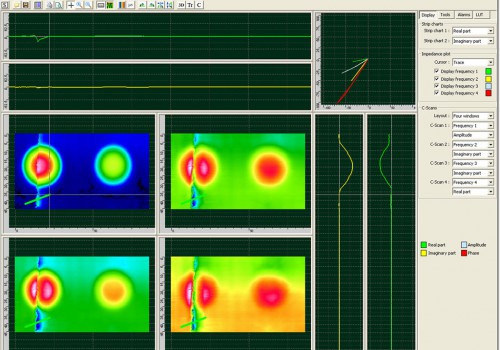

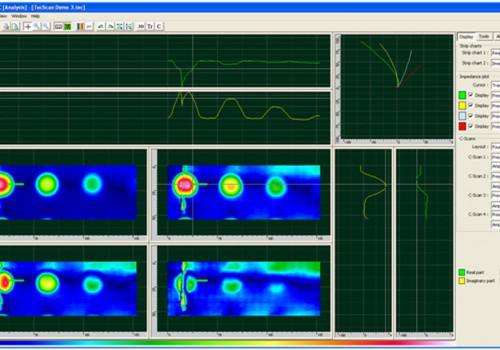

Once the data is stored and tagged, Eddy Current data analysis can be performed in the ANALYSIS module. Various C-Scans representations can be displayed based on different amplitude and phase combinations.
- Complete multi-tasking software
- Intuitive user-interface & menu
- Multiple frequency capabilities
- Real-time C-Scan
- Live Alarms
- Real-time Impedance and Strip Chart

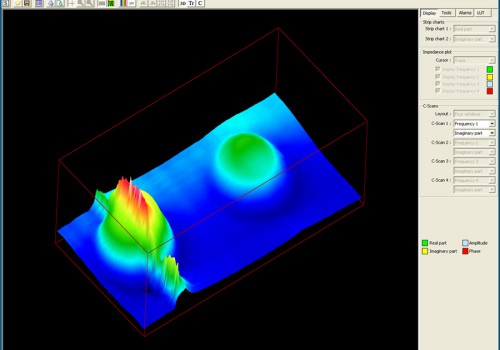

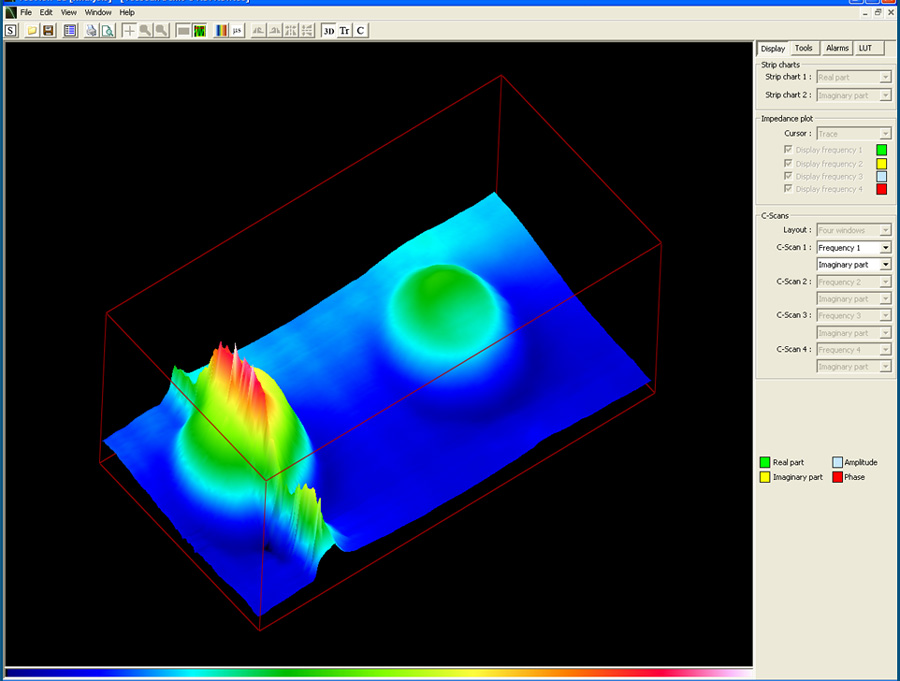

- Imaging & analysis module
Software important specifications:
|Date:||March 5, 2015|
